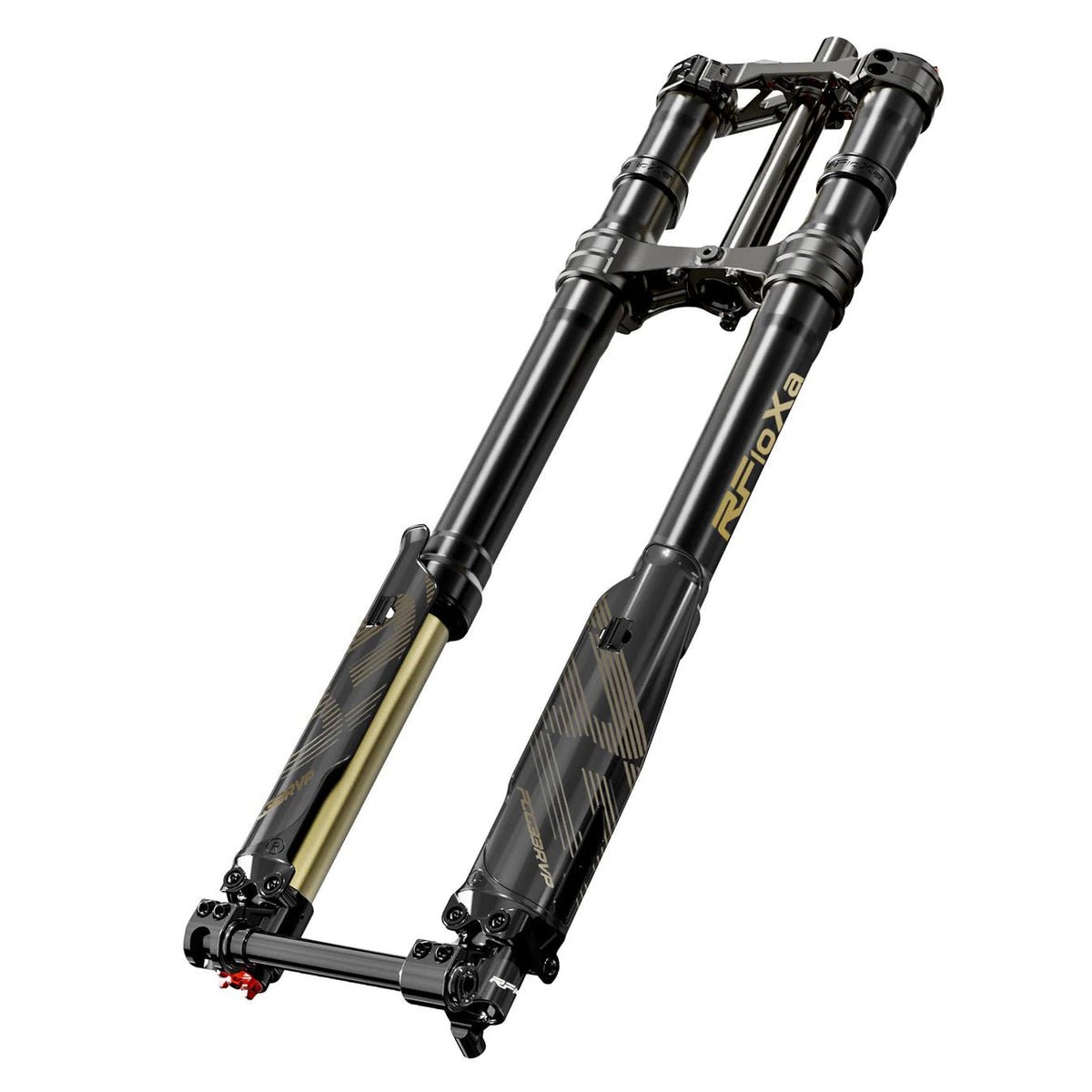

RFloXa Hawk35 MAX Front Fork – Precision Suspension for Talaria Sting MX5
Features
Center Distance: 750–800 mm
Main Piston Travel: 203–228 mm
Tube Diameter: 37 mm
Caliper Mount Spacing: 95.5 mm
Disc Brake Size: 220 mm (Upgradeable)
Damping System: Inverted Oil-Spring

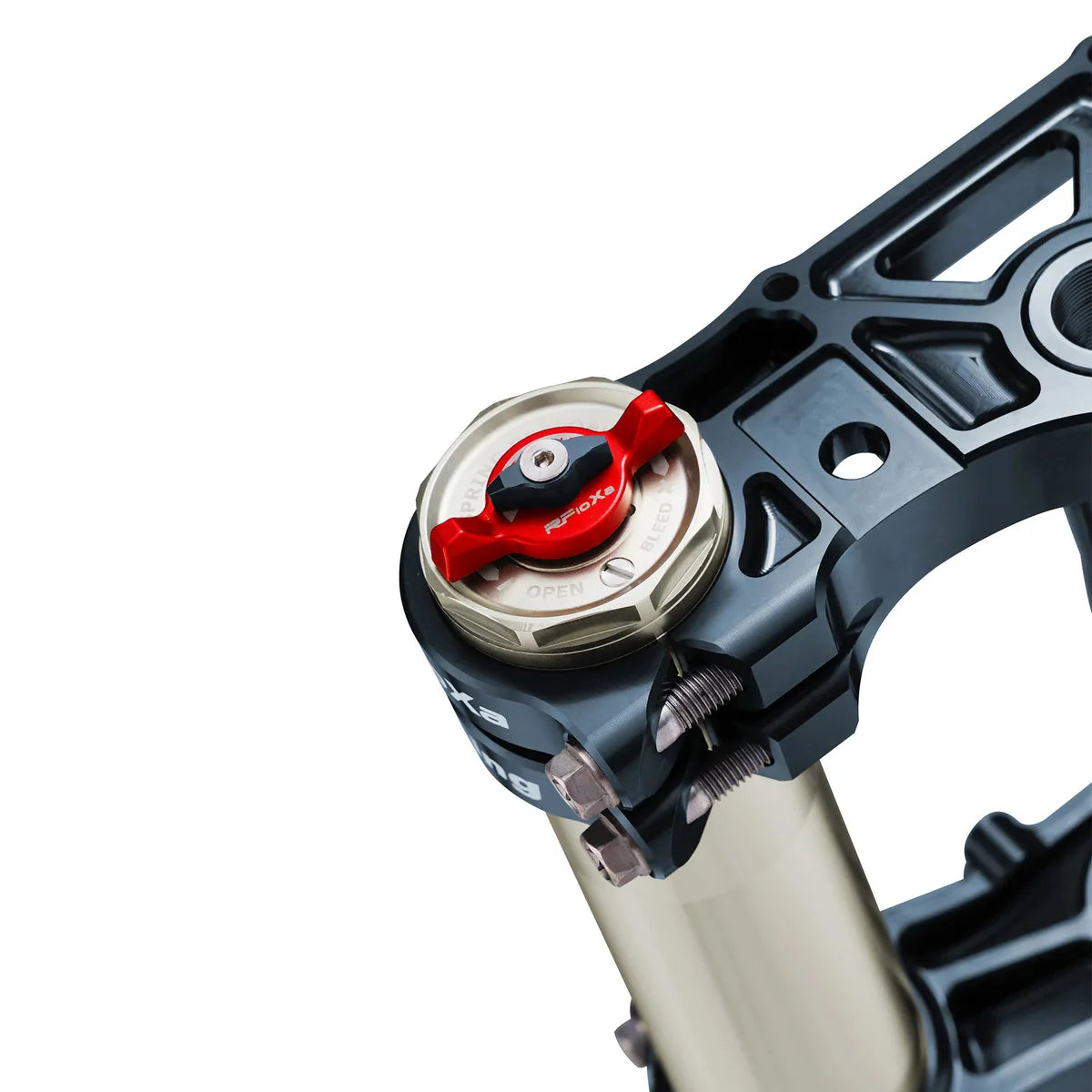

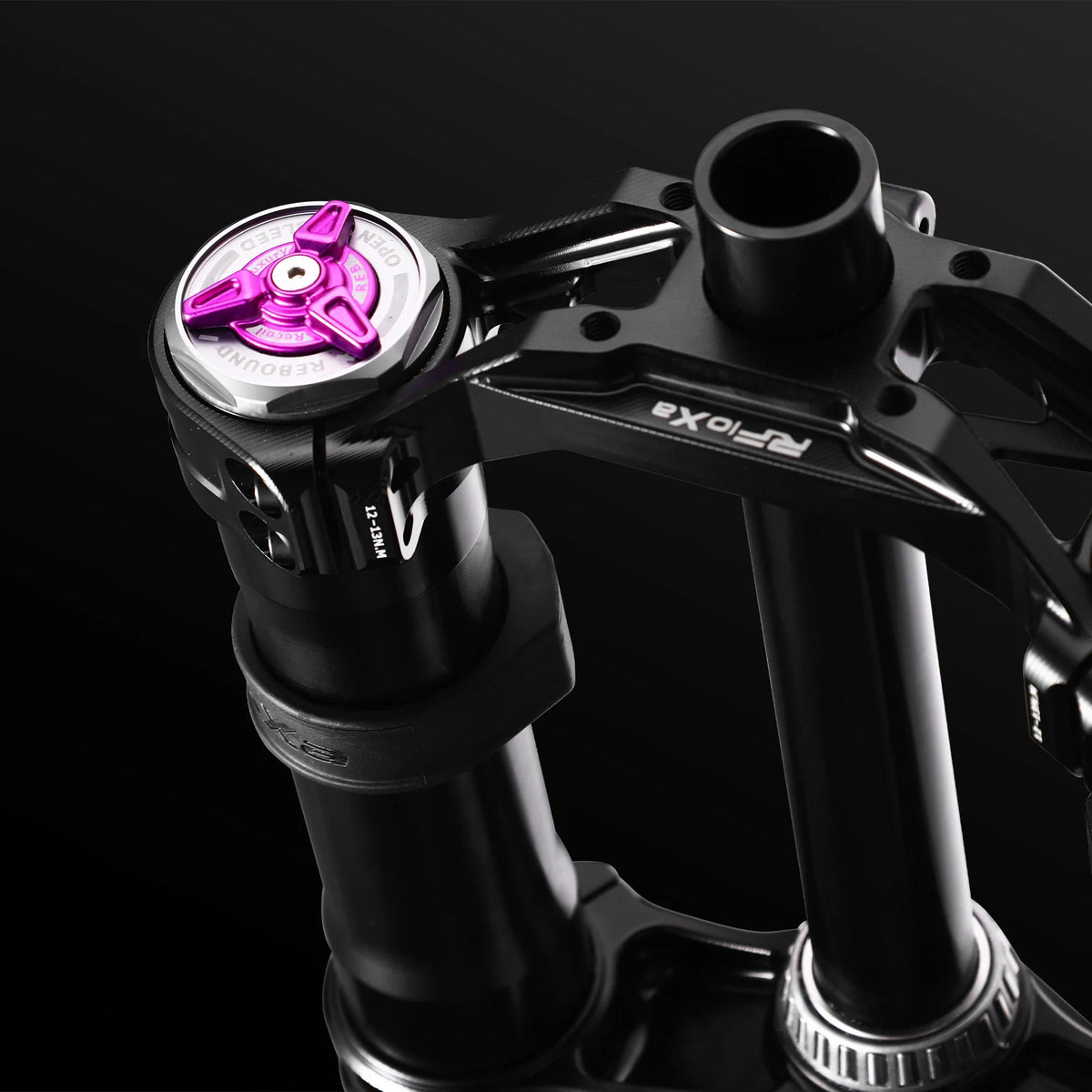

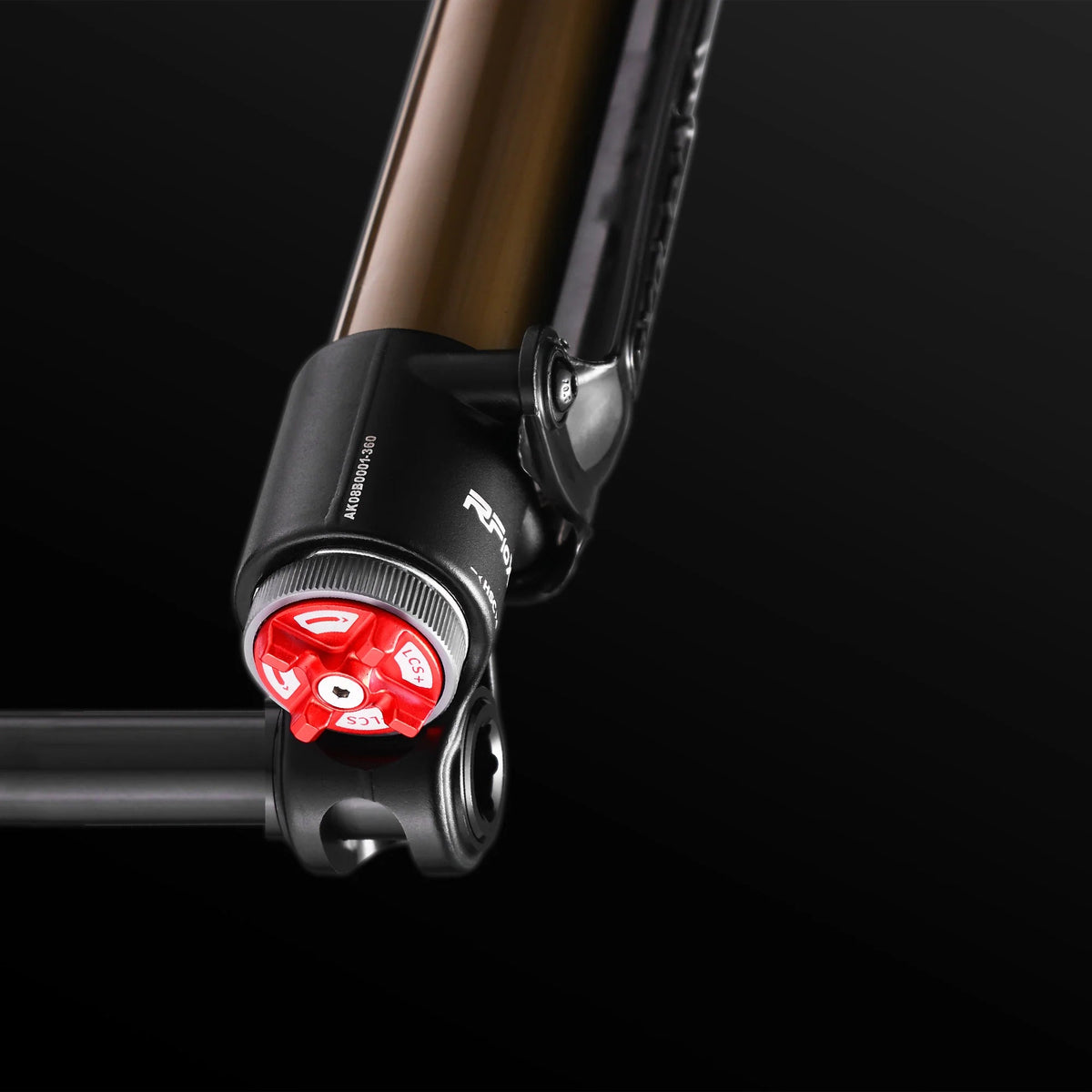

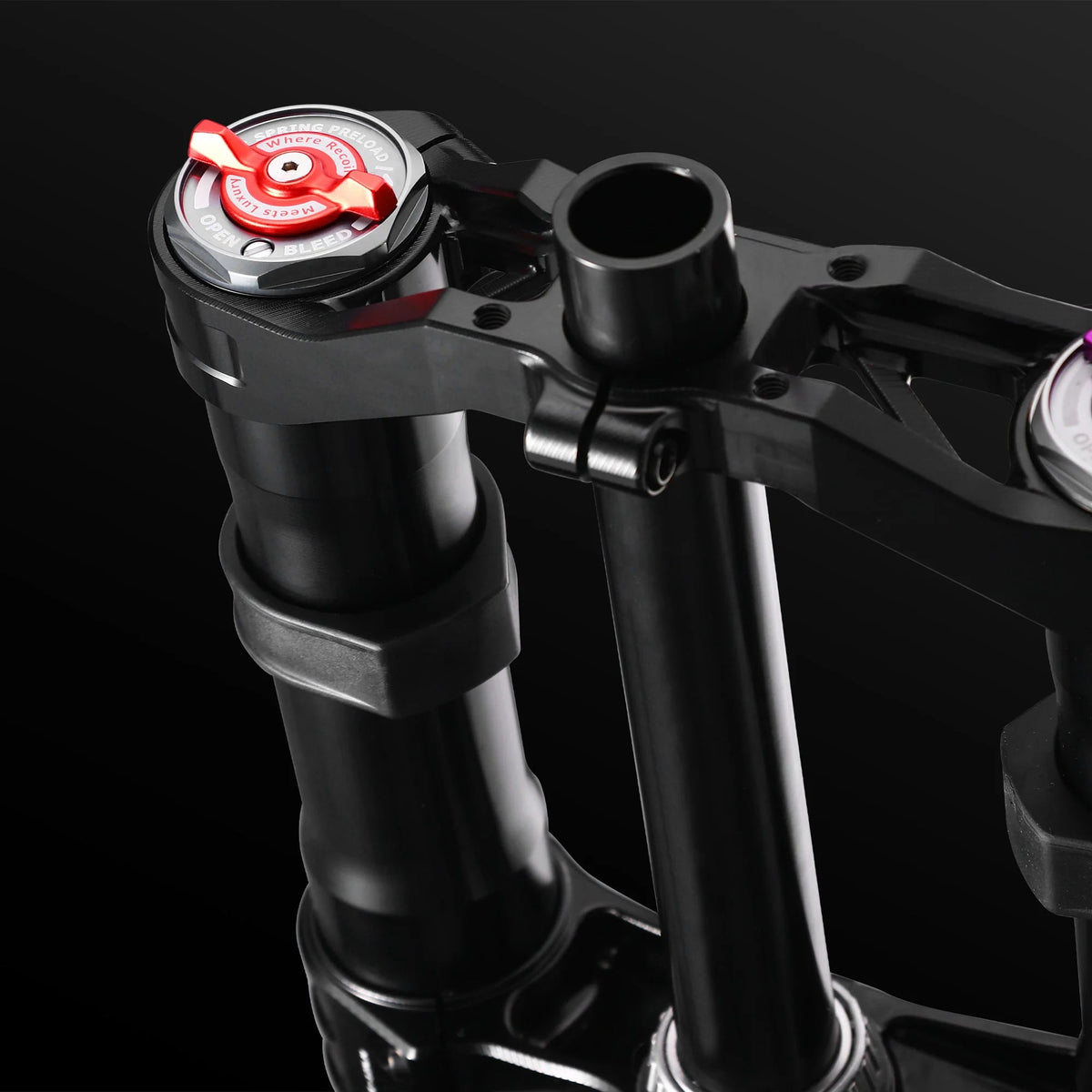

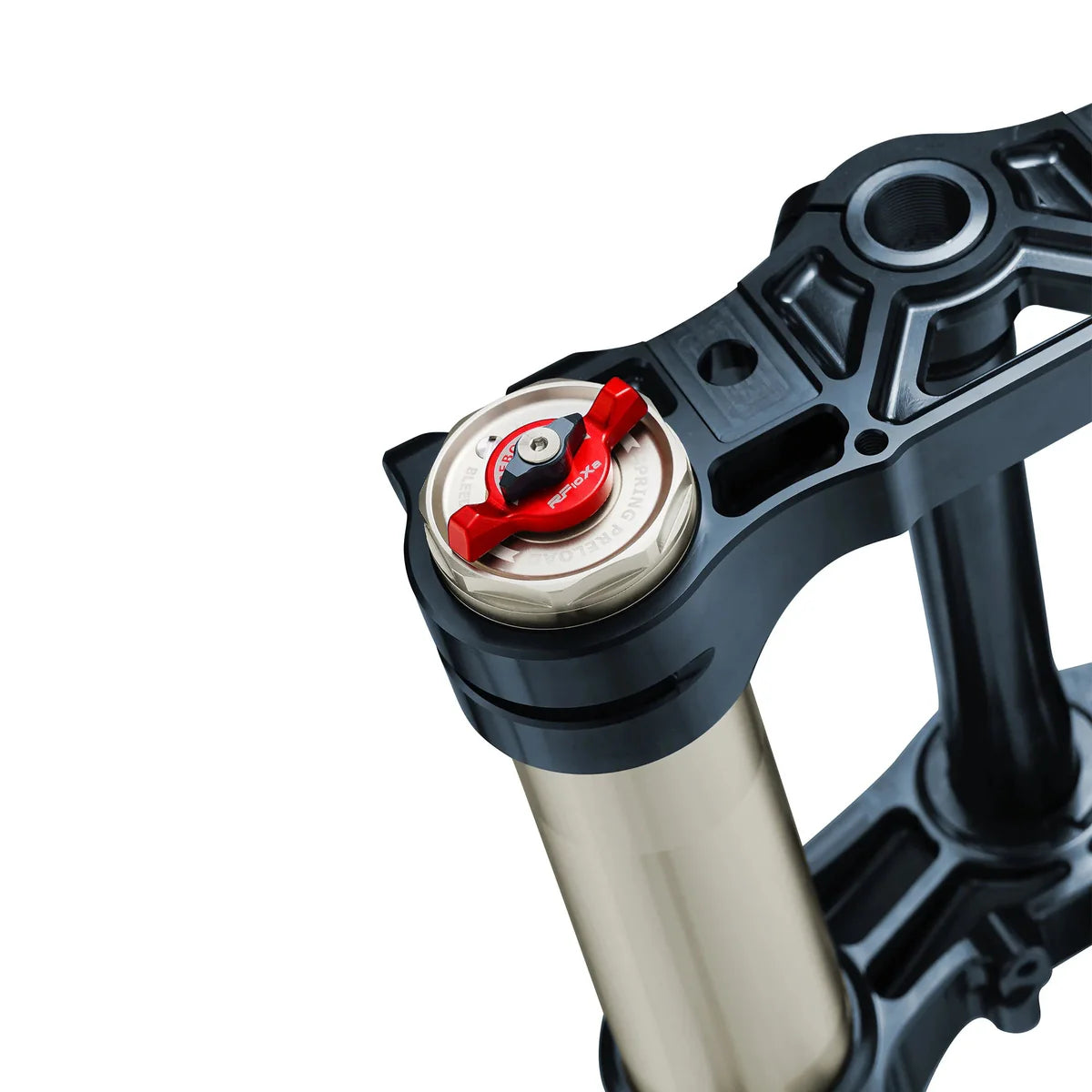

Adjustments: High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload
Materials: AL6061-T6 Forged Aluminum (Bottom), AL7075-T6 Aluminum (Tubes)
Spring Wire: 55CRSI

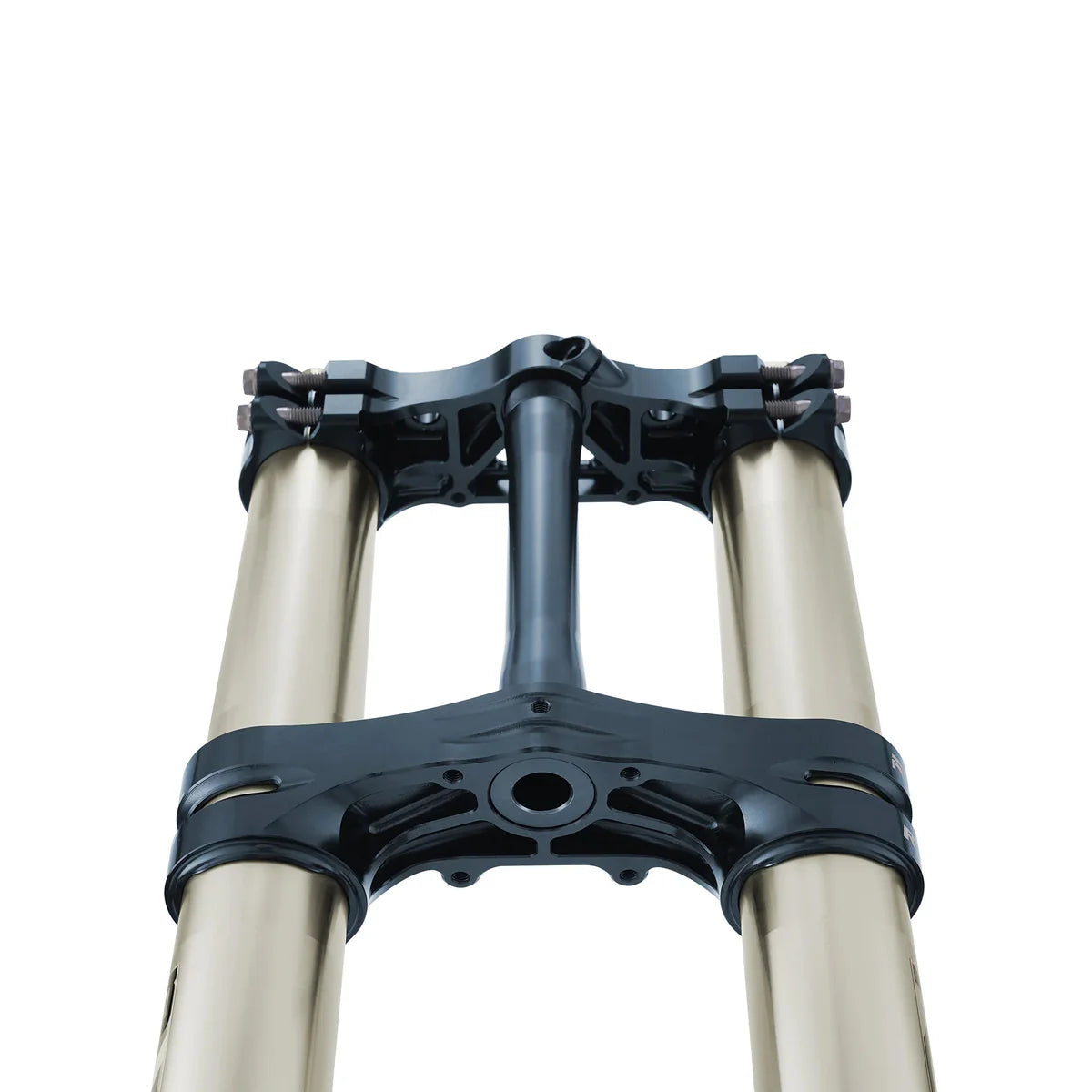

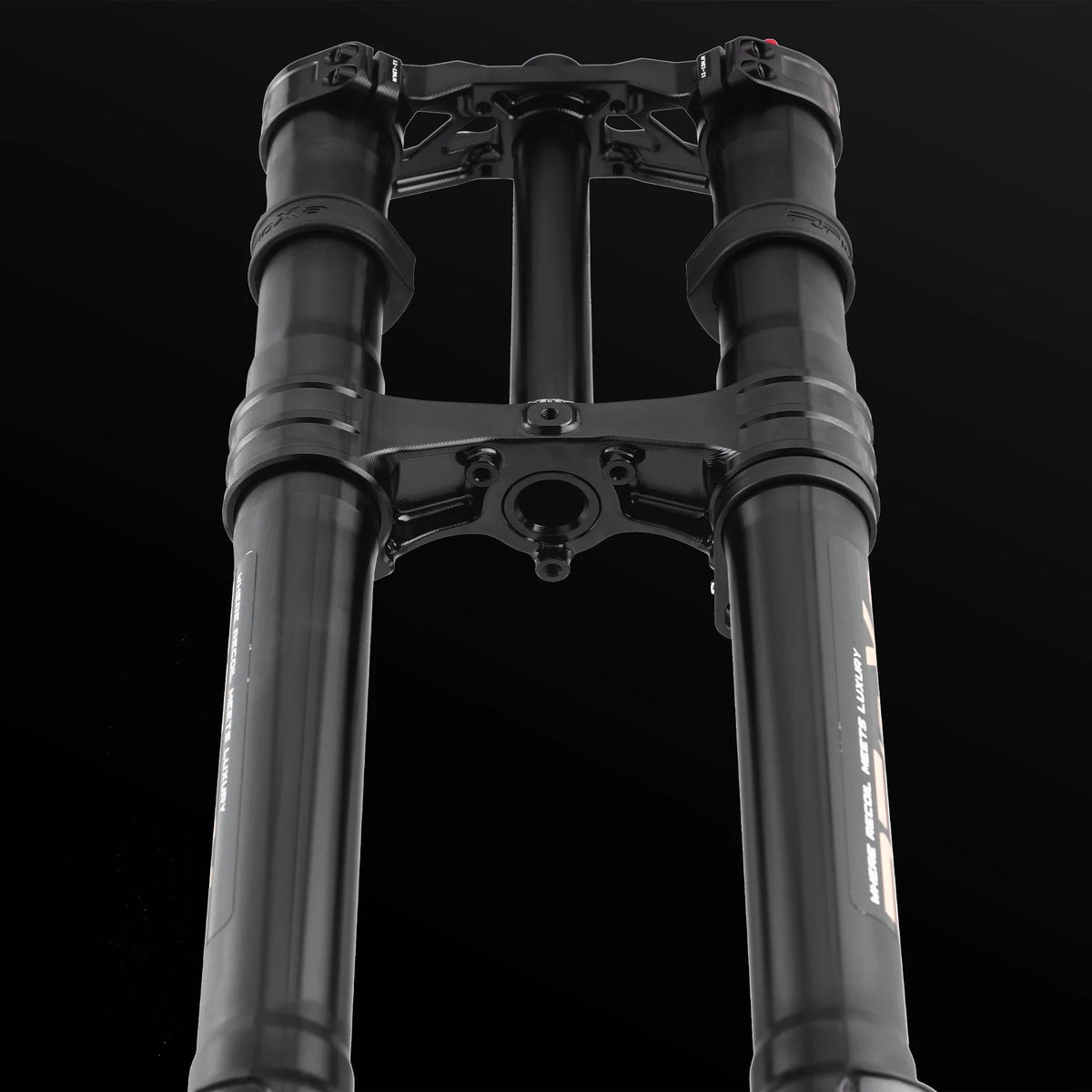

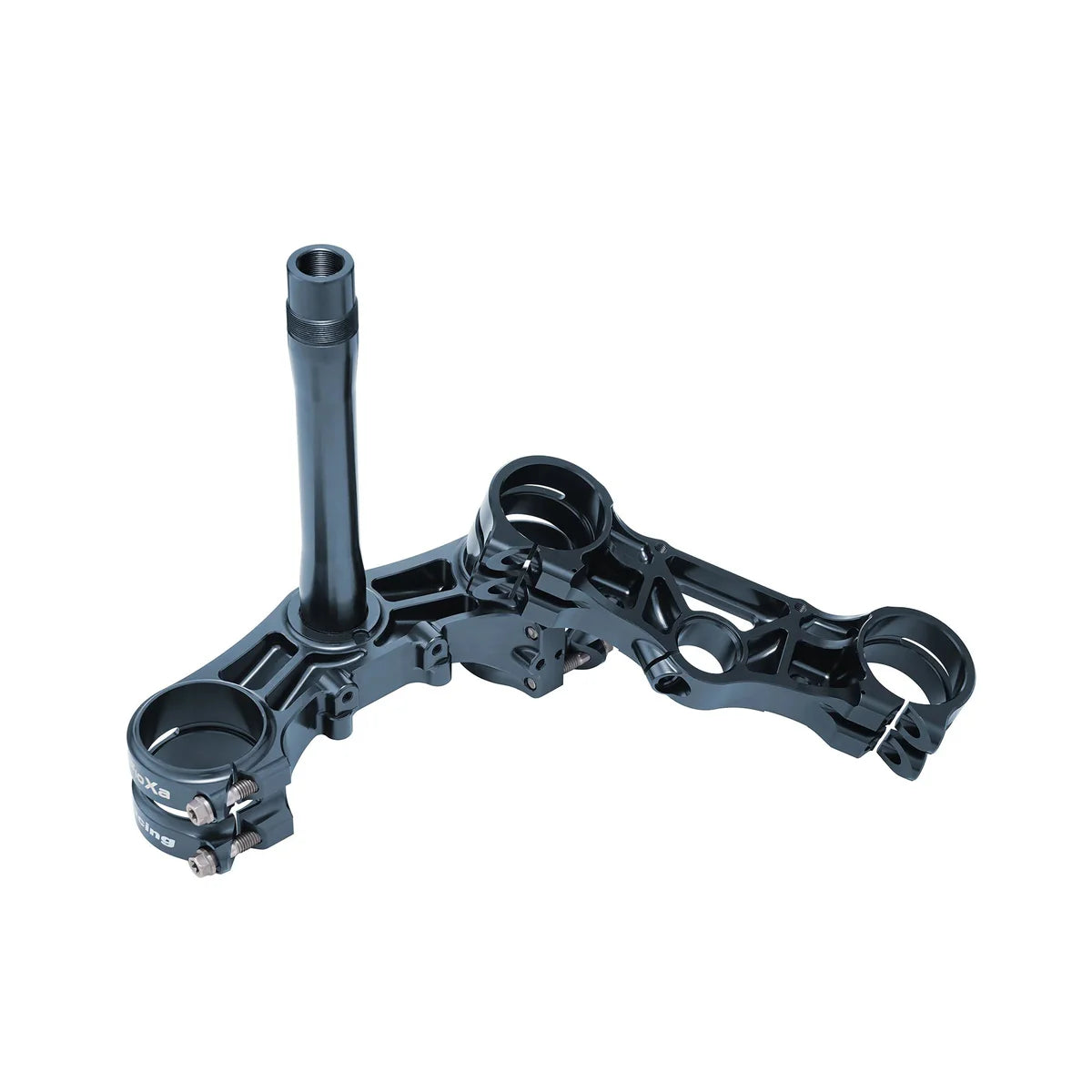

Triple Clamp: CNC Precision Machined
Fitment
1. Pre-Installed Bearing Kit
The Hawk35 MAX fork includes a preloaded bearing kit for fast, hassle-free installation—no extra parts required.
Prefer a version without the bearing kit? Just leave a note when ordering.
2. Purpose-Built for Talaria MX5
Engineered around the Talaria Sting MX5 geometry, this fork ensures perfect fitment and superior suspension performance. Compatible with 19-inch and 21-inch wheels, it adapts easily to trail, track, and street builds.
3. Spring Rate Recommendations
For 203 mm Travel (19"/21" wheels)
• 45 lb spring – ≤ 100 kg rider weight
• 60 lb spring – 100–130 kg (ideal for jumping)
• 45–60 lb progressive spring – 80–130 kg
For 228 mm Travel (19"/21" wheels)
• 45 lb spring – ≤ 100 kg rider weight
• 55 lb spring – 100–130 kg
4. Precision Suspension System
The inverted oil-spring damping system delivers smooth, consistent control with multi-stage adjustments for high-speed compression, low-speed compression, rebound, and spring preload. Easily fine-tune your setup for any terrain or riding style.
5. High-Quality Construction
Built from AL6061-T6 forged aluminum bottom brackets and AL7075-T6 aluminum fork tubes for the perfect strength-to-weight ratio. The 55CRSI spring wire ensures long-lasting performance and reliability under demanding conditions.
